Pack of 100

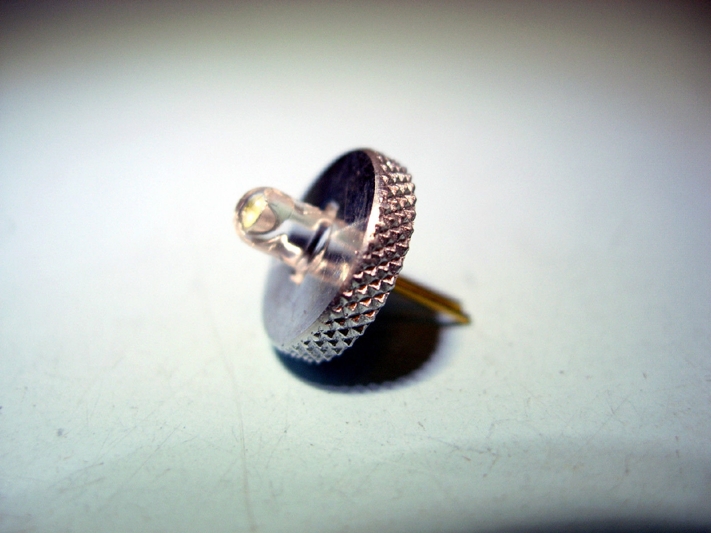

Product Description Specification of Patent Bi-Pin LED Module for 1 AAA MagLite SOLITAIRE
Battery : 1 AAA (Excepts 1 AAA Lithium Battery)
Operating voltage : 0.6V ~ 1.6V
Working current : 0.2A /1.3V
Luminous Flux : 16.5 lumens
Luminous intensity : 40 cd with SOLITAIRE reflector
Outer diameter : 10 mm
Metal case thickness : 1.5 mm
Bi - Pin dimension : 0.5 mm x 7.0 mm
Bi - Pin finishing : Gold plated with carbon steel
Battery run time : Min. 2 hours continually
Drop test : 3 times at 1 meter high from any direction
LED Module is polarity product. If the LED does not light on, User can pull up the module, rotaet 180 degree axially, reinsert and done.
*** This module contains boost up circuit and occupies 3 mm space inside the flashlight head. ( 3mm gap after closed down) SOLITAIRE flashlight head will not close down completely after the module installed. However, all the original functions of SOLITAIRE would not be affected. User should not give another screw when LED turned off !!!
*** We are continuing to improve the newest 1 AAA Bi - Pin module.
The specification is subject to change and without notice.
The specification is for reference only. ***
